myLogic: Positive Edge Detector

Prototype of a Positive Edge Detector with a RC delay

The content is under development, the final version will be as soon as possible.

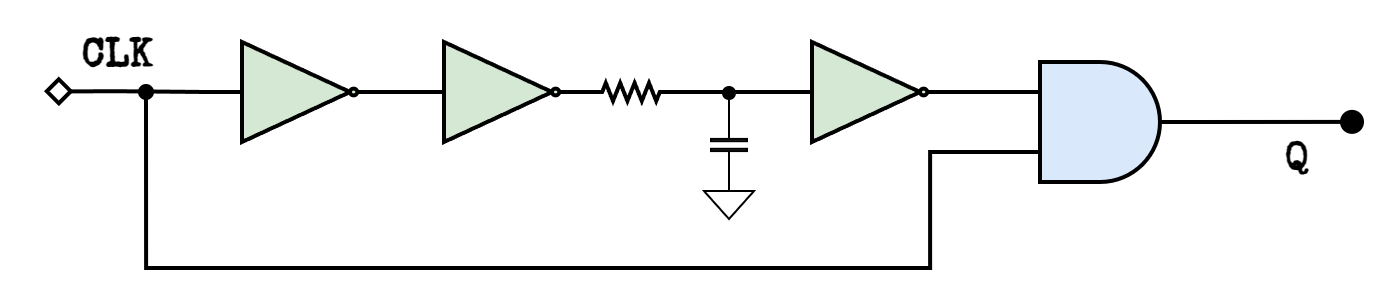

Prototype diagram
Positive Edge Detector with a RC delay
Prototype diagram

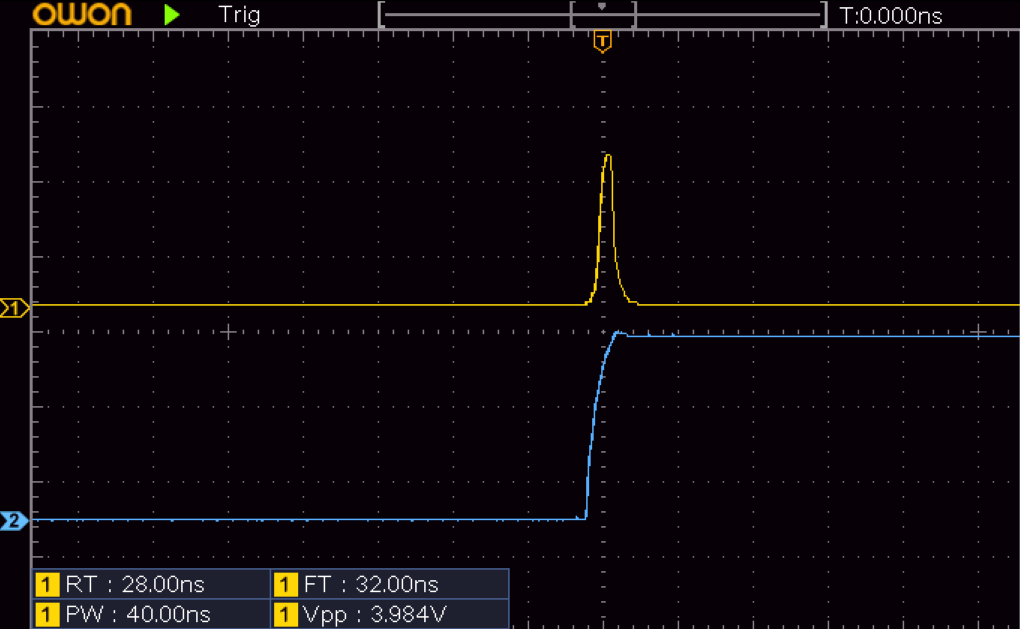

Positive Edge Detector HIGH output pulse
